Endurance meets performance

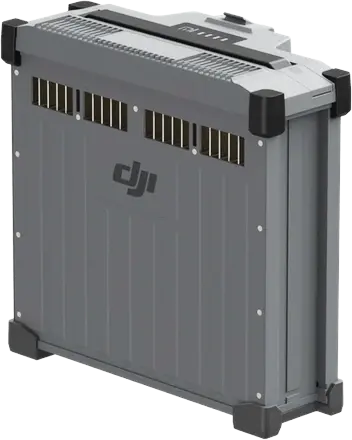

The DB1560 Intelligent Flight Battery uses high energy battery cells and an advanced power management system to provide long-lasting power to AGRAS™ aircraft. Its durable design and high discharge rate ensure reliable performance even in demanding agricultural environments.
Extended flight time
Large capacity allows drones to operate longer without frequent battery swaps.
Reliable in harsh conditions
Dust and water resistance ensures stable operation in diverse weather conditions.
Fast charging
Supports rapid charging to minimize downtime between flights.
Large capacity allows drones to operate longer without frequent battery swaps.
Reliable in harsh conditions
Dust and water resistance ensures stable operation in diverse weather conditions.
Fast charging
Supports rapid charging to minimize downtime between flights.
Battery Storage
- If storing the battery for more than three months, it is recommended to store the battery in a battery safety bag in an environment at a temperature range from -20° to 40° C (-4° to 104° F).
- DO NOT store the battery for an extended period after fully discharging. Doing so may over-discharge the battery and cause irreparable damage to the battery cell.
- If a battery with a low power level has been stored for an extended period, the battery will be in deep hibernation mode. Charge to wake the battery.
- Disconnect the battery from the aircraft if you intend to store the battery for an extended period.
Specs
Nominal voltage
52.22 V
Battery type
Li-ion
Battery chemical system
LiNiMinCoO2
Discharge rate
11.5 C
Operating temperature
-5°С to 45°С (23°С to 113°F)
Charging temperature
0°С to 60°С (32°С to 140°F)
Warranty details
1 500 cycles or 12 months (whichever occurs first)
IP rating
IP54 + Board-level potting protection
Capacity
30 000 mAh
Energy
1567 Wh
Max charging power
9500 W
Weight
Approx. 12.2. kg
Compatible Charging Device
- D12000iEP Multifunctional Inverter Generator
- C10000 Intelligent Power Supply
- D12000iE Multifunctional Inverter Generator
- C8000 Intelligent Battery Station
- T40 Intelligent Charger
- T30 Intelligent Battery Station
- D9000i Multifunctional Inverter Generator
